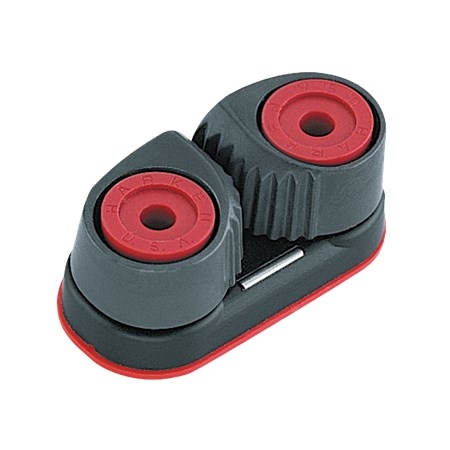

Harken® ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Aluminum Cam-Matics® are hardcoat-anodized for high-load, high-wear, continuous adjustment applications.
SPECIFICATIONS RESOURCES
Height (in) 7/8 in
Length (in) 1 7/8 in
Length (mm) 48 mm
Width (mm) 24 mm
Width (in) 15/16 in
Weight (g) 26 g
Weight (oz) 0.93 oz
Maximum line Ø (mm) 6 mm
Maximum line Ø (in) 1/4 in
Fasteners (mm) 4 RH mm
Fasteners (in) #8 RH in
Maximum working load (kg) 91 kg
Maximum working load (lb) 200 lb
Breaking load (kg) 181 kg
Breaking load (lb) 400 lb
Height (mm) 22 mm
Minimum line Ø (mm) 2 mm
Minimum line Ø (in) 3/32 in
Fastener spacing (mm) 27 mm
Fastener spacing (in) 1 1/16 in
Pawls Aluminum
