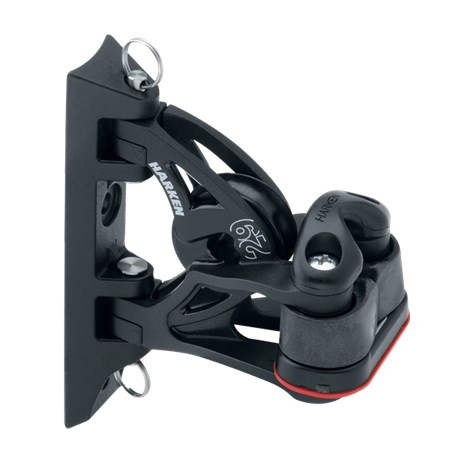

High-strength pivoting lead blocks with cams are used for halyard controls on larger keelboats and as “head knockers” on dinghies and beachcats for sheeting directly from the boom. Hole spacing and rivet size are the same as Classic models, making upgrades easy. Cam reverses for either up or down cleating. Can be used as becket block.
SPECIFICATIONS RESOURCES
Sheave Ø (mm) 29 mm
Sheave Ø (in) 1 1/8 in
Length (mm) 100 mm
Length (in) 3 15/16 in
Weight (g) 83.7 g
Weight (oz) 2.96 oz
Maximum line Ø (mm) 6 mm
Maximum line Ø (in) 1/4 in
Maximum working load (kg) 68 kg
Maximum working load (lb) 150 lb
Breaking load (kg) 295 kg
Breaking load (lb) 650 lb
Footnote Maximum working loads and breaking loads for blocks based on cam strengths.
