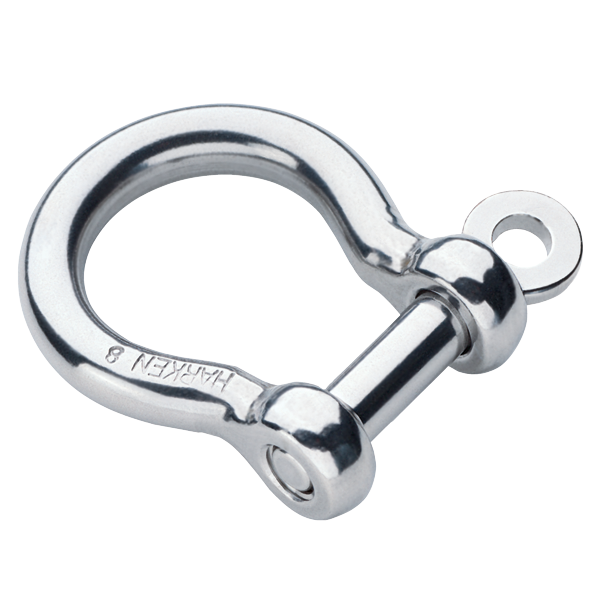

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
SPECIFICATIONS RESOURCES
Weight (g) 18 g
Weight (oz) 0.64 oz
Maximum working load (kg) 540 kg
Maximum working load (lb) 1190 lb
Breaking load (lb) 2380 lb
Breaking load (kg) 1080 kg
A (mm) 25 mm
A (in) 1 in
B (mm) 10 mm
B (in) 3/8 in
Shackle pin Ø (mm) 5 mm
Shackle pin Ø (in) 3/16 in
C (mm) 17 mm
C (in) 11/16 in
