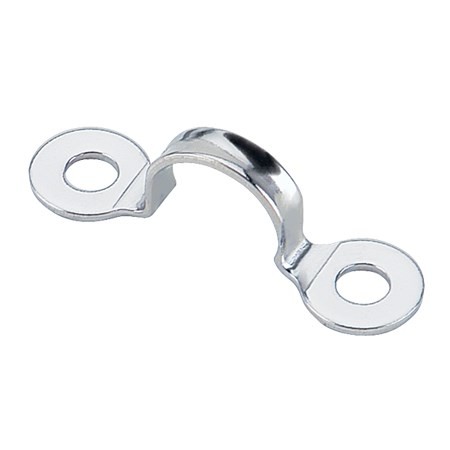

Eyestraps are useful accessories. They form light-duty mounting bases for blocks, serve as lash-down points, and can be used for fairleads.
SPECIFICATIONS RESOURCES
Length (mm) 38 mm
Length (in) 1 1/2 in
Weight (g) 2.5 g
Weight (oz) .09 oz
Breaking load (kg) 454 kg
Breaking load (lb) 1000 lb
Fasteners (mm) 4 RH mm
Fasteners (in) #8 RH in
A (mm) 38 mm
A (in) 1 1/2 in
B (mm) 10 mm
B (in) 3/8 in
Fastener spacing (in) 1 1/16 in
Fastener spacing (mm) 27 mm
C (mm) 27 mm
C (in) 1 1/16 in
D (mm) 11 mm
D (in) 7/16 in
E (mm) 10 mm
E (in) 3/8 in
F (mm) 11 mm
F (in) 7/16 in
Height above cam (mm) 10 mm
Height above cam (in) 3/8 in
